Structure-based methods outperform sequence-based methods on protein stability prediction of point mutants, but not full sequences

Summary

Structure-based methods such as Inverse folding models outperform sequence-based methods such as PLMs on protein stability prediction of point mutants, but not full sequences (1). Among those models, ESM-IF is the most effective (2,3). (4) found that embedding geometry into PLMs can improve stability prediction. In contrast, (5) found that the PLM ESM-2 had better Spearman correlations than these inverse folding models to experimental stability measurements when comparing the de novo sequences with the same target fold.

Details

Comparisons carried out by (2) were carried out using data from (6,7).

Data are ambiguous about when Rosetta or ProteinMPNN is better ((1); the former was substantially improved by (8) following transfer learning on ddG data by (7)).

Figures

Model name	Expression	Binding	Activity	Stability	Organismal fitness	Mean
N. Assays	6	10	31	68	69
EVE (ens.)	0.460	0.322	0.453	0.418	0.470	0.425
GEMME	0.382	0.361	0.490	0.518	0.469	0.444
ProGen2 (ens.)	0.459	0.298	0.417	0.422	0.446	0.408
VESPA	0.483	0.378	0.472	0.501	0.468	0.460
ProteinMPNN	0.162	0.148	0.213	0.555	0.177	0.251
ESM-IF1	0.401	0.375	0.387	0.630	0.368	0.432
Tranception L	0.441	0.329	0.462	0.473	0.459	0.433
TranceptEVE	0.481	0.341	0.482	0.502	0.478	0.457
StructSeq	0.549	0.399	0.498	0.633	0.468	0.509

Ref (3)

Design method	De Novo	Natural	All
GVP	0.390	0.494	0.450
PiFold	0.448	0.556	0.511
ProteinMPNN	0.428	0.605	0.531
ESMIF	0.500	0.629	0.575
ByProt	0.468	0.586	0.536
AF-Design	0.354	0.292	0.318
ESM-Design	0.127	0.0004	0.053

Ref (2)

Model	Version	TPR↑ DTm 5%	TPR↑ DTm 25%	TPR↑ DTm 50%	TPR↑ DDG 5%	TPR↑ DDG 25%	TPR↑ DDG 50%
PROGEN2	oas	0.033	0.286	0.537	0.000	0.339	0.515
	medium	0.117	0.367	0.582	0.072	0.443	0.615
	base	0.212	0.362	0.585	0.231	0.408	0.621
	large	0.132	0.323	0.557	0.117	0.320	0.597
	BFD90	0.178	0.333	0.589	0.206	0.451	0.644
	xlarge	0.118	0.353	0.578	0.144	0.383	0.603
TRANCEPTION	medium	0.188	0.359	0.564	0.083	0.367	0.527
	large	0.149	0.371	0.586	0.072	0.395	0.540
PORTTRANS	bert	0.131	0.364	0.586	0.122	0.424	0.635
	bert_bfd	0.168	0.336	0.579	0.136	0.423	0.589
	t5_xl_uniref50	0.184	0.412	0.593	0.147	0.425	0.640
	t5_xl_bfd	0.136	0.350	0.587	0.106	0.419	0.610
ESM-1V	-	0.216	0.386	0.602	0.231	0.451	0.622
ESM-1B	-	0.151	0.402	0.606	0.211	0.424	0.642
ESM-IF1	-	0.188	0.418	0.656	0.258	0.469	0.641
ESM-2	t30	0.139	0.397	0.598	0.172	0.453	0.646
	t33	0.239	0.407	0.601	0.181	0.438	0.637
	t36	0.152	0.408	0.634	0.169	0.405	0.641
	t48	0.232	0.430	0.607	0.189	0.400	0.606
P¹³LG	k20_h1280	0.304	0.419	0.642	0.267	0.454	0.676

Ref (4)

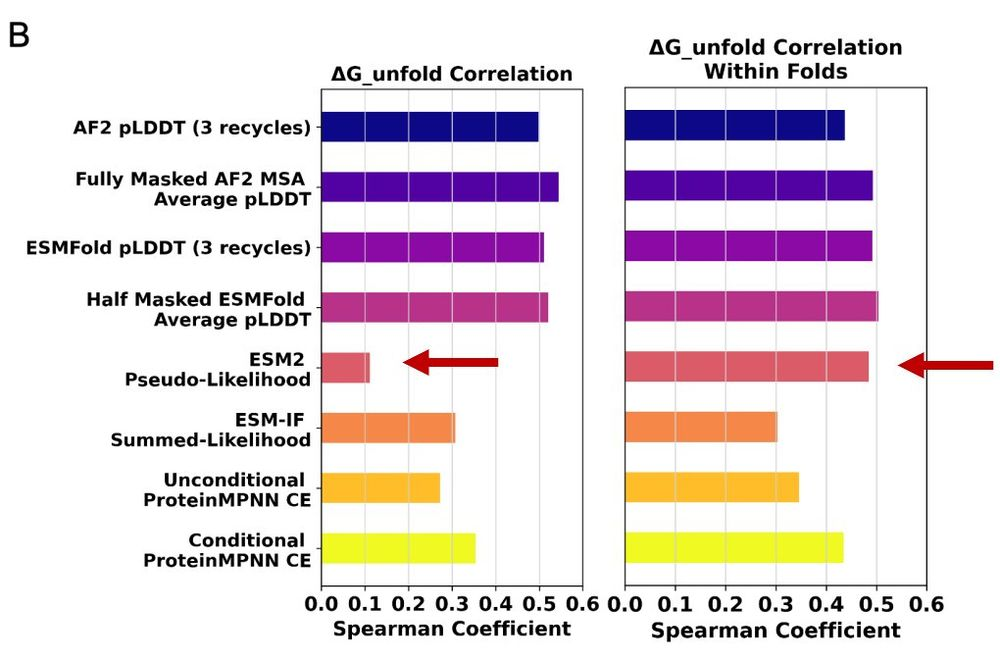

Ref (5)

See also

• MSA-based structure predictions outperform PLM-based methods

1.

Reeves S, Kalyaanamoorthy S. Zero-shot transfer of protein sequence likelihood models to thermostability prediction. Nature Machine Intelligence. 2024;6(9):1063–76. Available from: https://doi.org/10.1038/s42256-024-00887-7

2.

Wang C, Zhong B, Zhang Z, Chaudhary N, Misra S, Tang J. PDB-Struct: A Comprehensive Benchmark for Structure-based Protein Design. 2023; Available from: https://arxiv.org/abs/2312.00080

3.

Paul S, Kollasch A, Notin P, Marks D. Combining Structure and Sequence for Superior Fitness Prediction. In: GenBio@NeurIPS2023. 2023. Available from: https://openreview.net/forum?id=8PbTU4exnV

4.

Tan Y, Zhou B, Jiang Y, Wang YG, Hong L. Multi-level Protein Representation Learning for Blind Mutational Effect Prediction. 2023; Available from: https://arxiv.org/abs/2306.04899

5.

Cho Y, Dauparas J, Tsuboyama K, Rocklin G, Ovchinnikov S. Implicit modeling of the conformational landscape and sequence allows scoring and generation of stable proteins. openRxiv; 2024. Available from: https://doi.org/10.1101/2024.12.20.629706

6.

Rocklin GJ, Chidyausiku TM, Goreshnik I, Ford A, Houliston S, Lemak A, et al. Global analysis of protein folding using massively parallel design, synthesis, and testing. Science. 2017;357(6347):168–75. Available from: https://doi.org/10.1126/science.aan0693

7.

Tsuboyama K, Dauparas J, Chen J, Laine E, Mohseni Behbahani Y, Weinstein JJ, et al. Mega-scale experimental analysis of protein folding stability in biology and design. Nature. 2023;620(7973):434–44. Available from: https://doi.org/10.1038/s41586-023-06328-6

8.

Dieckhaus H, Brocidiacono M, Randolph NZ, Kuhlman B. Transfer learning to leverage larger datasets for improved prediction of protein stability changes. Proceedings of the National Academy of Sciences. 2024;121(6). Available from: https://doi.org/10.1073/pnas.2314853121
