pLDDT

(LDDT redirects here) pLDDT (predicted local distance difference test) is a confidence metric used by neural networks for protein structure prediction. It captures the per-residue accuracy, both in terms of neighborhood and side chain rotamer. It was first directly integrated into structure prediction by AlphaFold2 at the per-residue level and has been widely adopted since. AlphaFold3 adopted per-atom pLDDT.

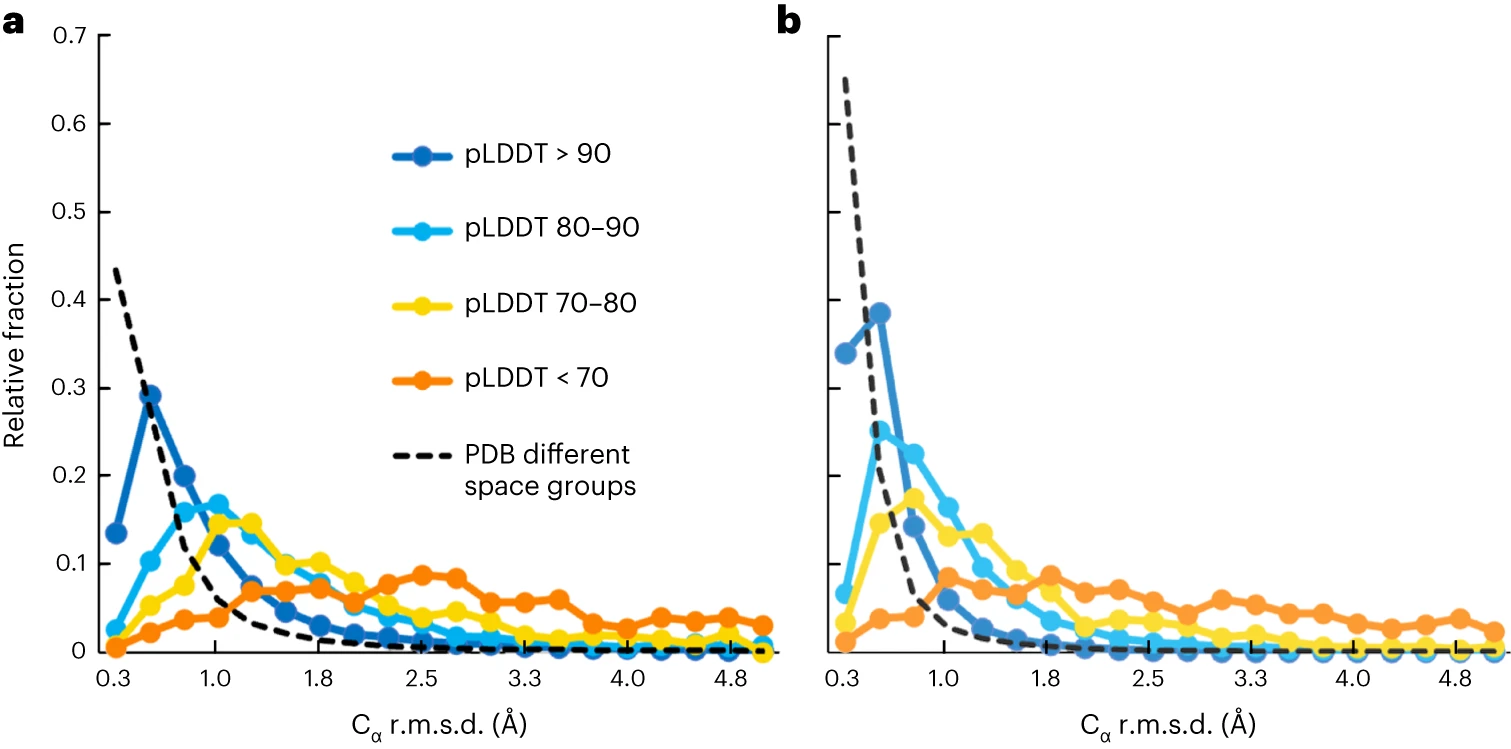

Figure from (1)

Notes

When clustering predicted protein structures, sparse clusters tend to have lower pLDDT (2). This was found to be independent of MSA depth.
pLDDT correlates poorly with GDT-TS among AlphaFold2 models in CASP15. This was observed in a repeat that used deeper MSAs (3).
De novo sequences designed by inversion with high pLDDT were found by ESM to have high perplexity (4).
While the default pLDDT is not continuously differentiable and thus unsuitable for training, (5) use a modified version that can be used as a loss function.
pLDDT can be used as spatial restraints in biomolecular simulations: $E_{p L DD T} = \sum (\frac{d _{i}}{1.5 * exp ( 4 * ( 0.7 - p L DD T _{i} ) )})^{2}$ The equation was originally presented by Hiranuma et al. (6) and was used by del Alamo et al. (7) as coordinate constraints in Rosetta when refining AlphaFold2 models.

Terwilliger TC, Afonine PV, Liebschner D, Croll TI, McCoy AJ, Oeffner RD, et al. Accelerating crystal structure determination with iterative AlphaFold prediction. Acta Crystallographica Section D Structural Biology. 2023;79(3):234–44. Available from: https://doi.org/10.1107/s205979832300102x

Nomburg J, Doherty EE, Price N, Bellieny-Rabelo D, Zhu YK, Doudna JA. Birth of protein folds and functions in the virome. Nature. 2024;633(8030):710–7. Available from: https://doi.org/10.1038/s41586-024-07809-y

Lee S, Kim G, Karin EL, Mirdita M, Park S, Chikhi R, et al. Petascale Homology Search for Structure Prediction. openRxiv; 2023. Available from: https://doi.org/10.1101/2023.07.10.548308

Verkuil R, Kabeli O, Du Y, Wicky BIM, Milles LF, Dauparas J, et al. Language models generalize beyond natural proteins. openRxiv; 2022. Available from: https://doi.org/10.1101/2022.12.21.521521

Trinquier J, Petti S, Park S, Herath K, van Kempen M, Feng S, et al. SoftAlign: End-to-end protein structures alignment. openRxiv; 2025. Available from: https://doi.org/10.1101/2025.05.09.653096

Hiranuma N, Park H, Baek M, Anishchenko I, Dauparas J, Baker D. Improved protein structure refinement guided by deep learning based accuracy estimation. Nature Communications. 2021;12(1). Available from: https://doi.org/10.1038/s41467-021-21511-x

del Alamo D, DeSousa L, Nair RM, Rahman S, Meiler J, Mchaourab HS. Integrated AlphaFold2 and DEER investigation of the conformational dynamics of a pH-dependent APC antiporter. Proceedings of the National Academy of Sciences. 2022;119(34). Available from: https://doi.org/10.1073/pnas.2206129119
